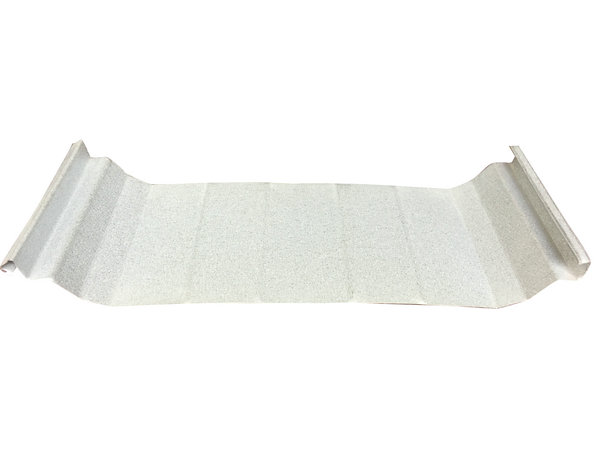

角馳板60-470型

【原材料介紹】

基板可以分成冷軋基板、熱鍍鋅基板、電鍍鋅基板

彩鋼板的涂層種類可以分成：聚酯、硅改性聚酯、偏聚二氟乙烯、塑料溶膠

彩鋼板的表面狀態可以分成涂層板、壓花板、印花板。

彩鋼板的顏色可以按用戶的要求分成很多種類，如海藍、緋紅、磚紅、象牙白等

Type 60-470 Corner Flexible Plate

[Introduction of Raw Materials]

Substrates can be divided into cold rolled, hot galvanized and galvanized substrates.

Coating types of color steel plate can be divided into: polyester, silicon modified polyester, polyvinylidene fluoride, plastic sol.

The surface state of color steel plate can be divided into coating plate, embossing plate and printing plate.

The color of color steel plate can be divided into many kinds according to user's requirements, such as sea blue, scarlet, brick red, ivory white, etc.

【板型參數】

材質：彩鋼、鋁鎂錳

規格：YX60-470

分類：暗扣式屋面板

厚度：彩鋼一般為0.4~0.6mm厚，鋁鎂錳一般為0.8~1.0mm厚

展寬=600mm

長度：理論上可以任意訂做，但需考慮車輛運輸?shù)拈L(zhǎng)度限制。

[Plate shape parameters]

Material: color steel, aluminium, magnesium and manganese

Specification: YX60-470

Classification: Underbutton Roof Panel

Thickness: Color steel is generally 0.4-0.6 mm thick, Al-Mg-Mn is generally 0.8-1.0 mm thick.

Broadening =600mm

Length: It can be customized in theory, but the length limit of vehicle transportation should be considered.

【施工工藝】

安裝做法：

1、安裝屋面檁條，檢驗檁條的平整度；

2、安裝屋面風機、設備洞口檁條，檢驗龍骨的尺寸及平整度；

3、鋪設保溫棉，找平支撐（隔間架）；

4、安裝屋面角馳板；

5、完成風機、設備防水處理；

[Construction Technology]

Installation practices:

1. Install roof purlin to check its flatness.

2. Install purlin of roof fan and equipment hole to check the size and flatness of keel.

3. Laying thermal insulation cotton and leveling support (compartment frame);

4. Installation of roof corners;

5. Complete the waterproof treatment of fans and equipment.
